#101D,PSVANE TUBES,Hi-Fi Series.

Product Categories

Zhongshan Means Intelligent Technology Co.,Ltd

Contact Now

Name: 101DPSVANE TUBESHiFi Series
Brand: PSVANE
Price: 1 USD

Place of Origin : China

Brand Name : PSVANE

Certification : ROHS

Model Number : 101D

Contact Now

101D is low u, used in voltage amplifier.

typical working parameter

UH 4.5 V

IH 1.0 A

Ua 190 V

Ug －14 　V

Ia 10 mA

Amplification factor 6.2

output power ≥ 200 m W

Direct Interelectrode Capacitances

input 6.4 pF

output 4.4 pF

gride to plate ≤ 2.9 pF

limited parameter minimum maximun

UH 4 5 V

Ua 400 V

Pa 15 W

Ia 20 mA

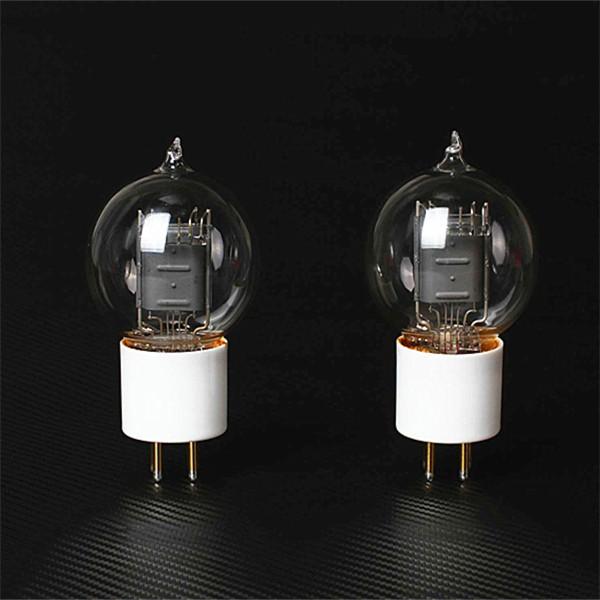

#101D,PSVANE TUBES,Hi-Fi Series. Images
