#WE205D,PSVANE TUBES,WE-Series.

Name: WE205DPSVANE TUBESWESeries
Brand: PSVANE
Price: 1 USD

Buy cheap #WE205D,PSVANE TUBES,WE-Series. product

Place of Origin : China

Brand Name : PSVANE

Certification : ROHS

Model Number : WE205D

Contact Now

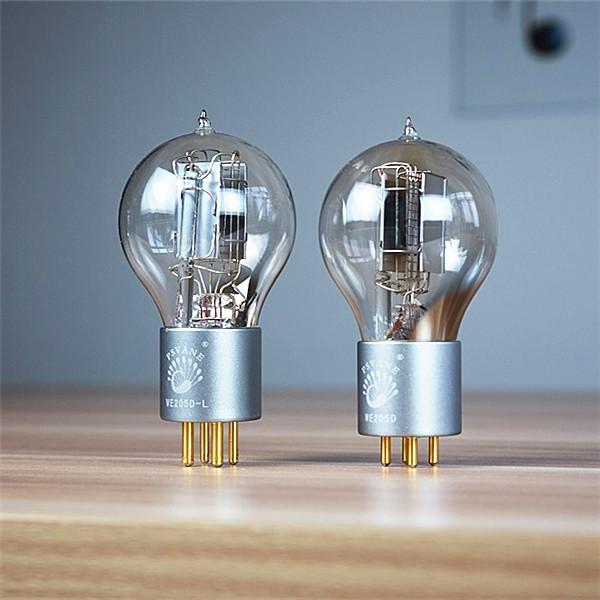

The difference between WE205D and WE205D-L is pin, WE205D needs to match original WE-style tube socket, while WE205D-L only need flat quadrangle tube socket.

Electrical parameter rating value unit

Direct Interelectrode Capacitances

Input 4.8 uuF

Output 5.2 uuF

Grid to plate ≤ 3.3 uuF

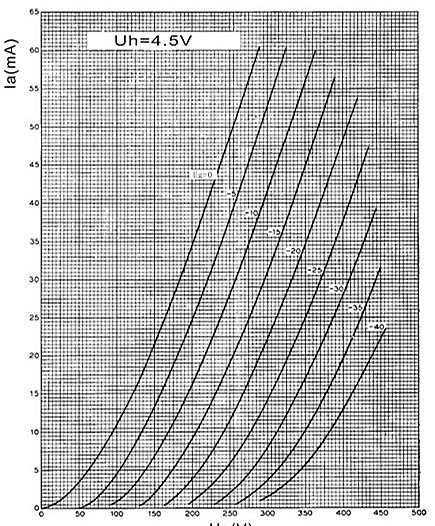

Typical operating parameter

Heater voltage 4.5 V

Heater current 1.6 A

Ua 300 V

Ug -30 V

Ia 8 mA

Amplification coefficient 6.7

Pout ≥ 800 mW

Electrical parameter—absolute maximum ratings minimum maximum unit

Heater voltage 4 5 V

Ua - 400 V

Pa - 15 W

Ia - 50 mA

#WE205D,PSVANE TUBES,WE-Series.

#WE205D,PSVANE TUBES,WE-Series. Images
