#WE101D,PSVANE TUBES,WE-Series.

Name: WE101DPSVANE TUBESWESeries
Brand: PSVANE
Price: 1 USD

Buy cheap #WE101D,PSVANE TUBES,WE-Series. product

Place of Origin : China

Brand Name : PSVANE

Certification : ROHS

Model Number : WE101D

Contact Now

The difference between WE101D and WE101D-L is pin, WE101D needs to match original WE-style tube socket, while WE101D-L only need flat quadrangle tube socket.

Electrical parameter rating value unit

Direct Interelectrode Capacitances

Input 4.8 uuF

Output 5.2 uuF

Grid to plate ≤ 3.3 uuF

Typical operating parameter

Heater voltage 4.5 V

Heater current 1.0 A

Ua 190 V

Ug -18 V

Ia 6.4 mA

Electrical parameter—absolute maximum ratings minimum maximum unit

Heater voltage 4 5 V

Ua - 300 V

Pa - 15 W

Ia - 30 mA

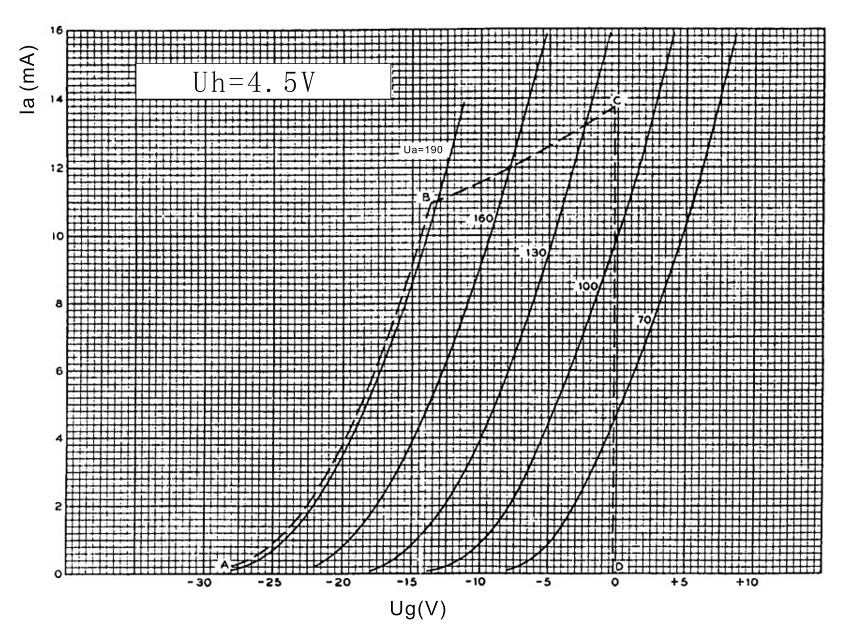

#WE101D,PSVANE TUBES,WE-Series. Images
